Washburn N4 Nuno Bettencourt Ash Solidbody Electric Guitar, 1997 [USED]

Here is a Washburn N4 Nuno Bettencourt Ash Solidbody electric guitar from 1997.

While the Washburn Nuno Bettencourt Signature N4 is a fairly straightforward solidbody electric guitar, it has a number of features that set it apart. One of the most noticeable of these is the use of the patented Stephen's Extended Cutaway, allowing a very stable neck joint and full access to all the frets.

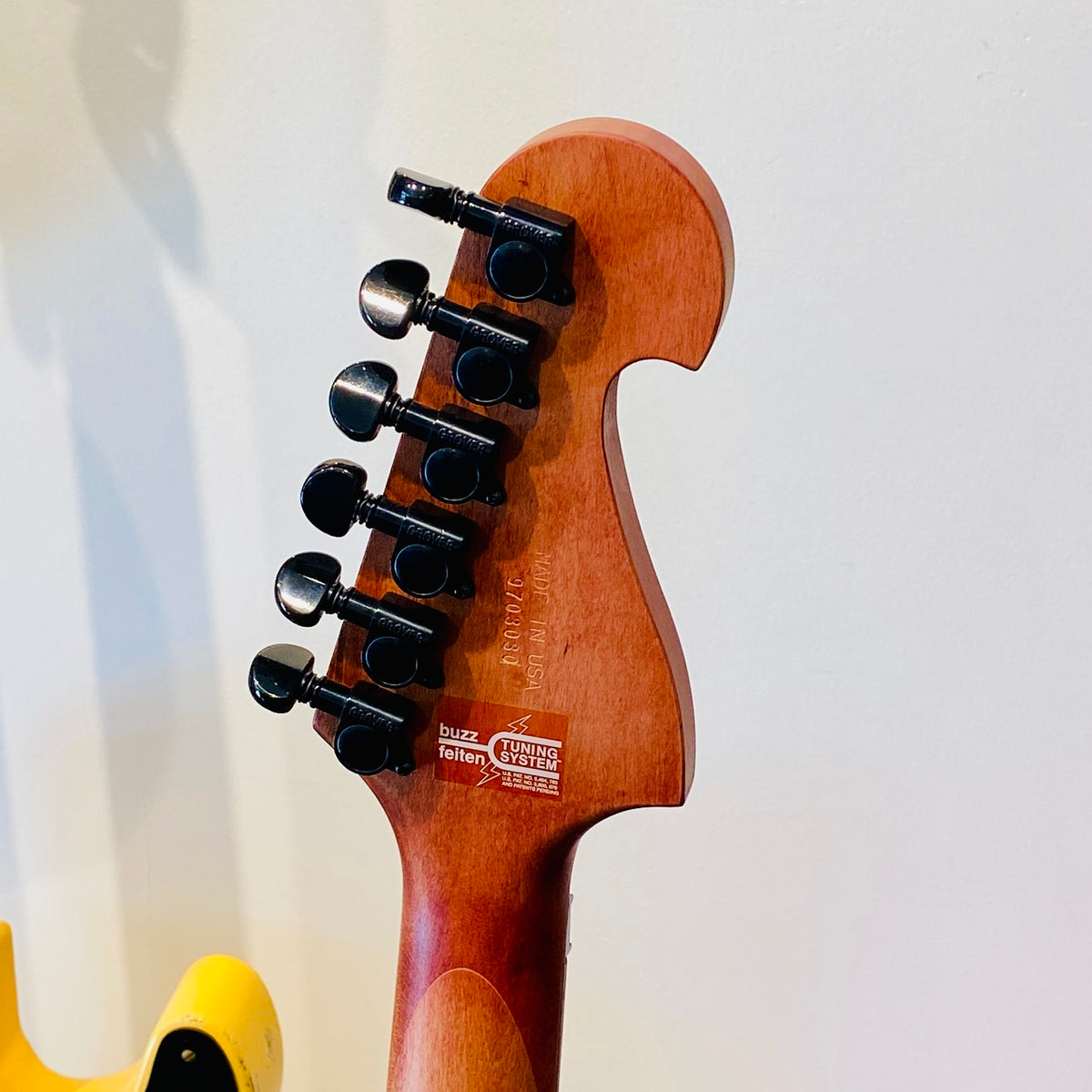

As marked on the back of the headstock, this model is built for the patented Buzz Feiten tuning system, designed to bring more notes into tune with each other. While there is no specific hardware, it does incorporate several alterations to nut and saddle placement and defined tuning offsets.  Many electronic tuners come with Feiten presets.

Stephen's Stringed Instruments describes their Extended Cutaway (EC) system:

"The EC is a set of design elements which allow a guitar neck to be attached to the instrument body in a way that substantially reduces the interference of the heel with the player's hand. The primary goal of the EC design is to remove the heel from beneath the portion of the neck which lies on or near the body of the instrument, thereby allowing a guitar player to maintain proper hand position, with the thumb behind the neck. A secondary goal is to achieve this unprecedented access while improving the structural stability and the tone of the instrument.

The EC is most commonly configured so that the heel of the neck extends outward from the bass side of the neck, instead of below the neck as on conventional designs. This position allows a guitar with a cutaway to have a "pocket" under the heel end of the neck for the palm and thumb of the players fretting hand, thereby "extending the cutaway. "

Washburn is one of the older names in North American music industry history, launching in 1883 as an upmarket brand for Lyon & Healy, producing parlor guitars, mandolins and banjos.  During WW2, the company essentially ceased production, though the name continued to exist as corporate property.  In 1977, new ownership brought it out of its dormant state with new products.  It changed hands in 2002 and 2009, and the current owner is Exertis USA by way of acquiring Jam industries.  Exertis UK was restructured in early 2026 but the US division is currently unaffected.

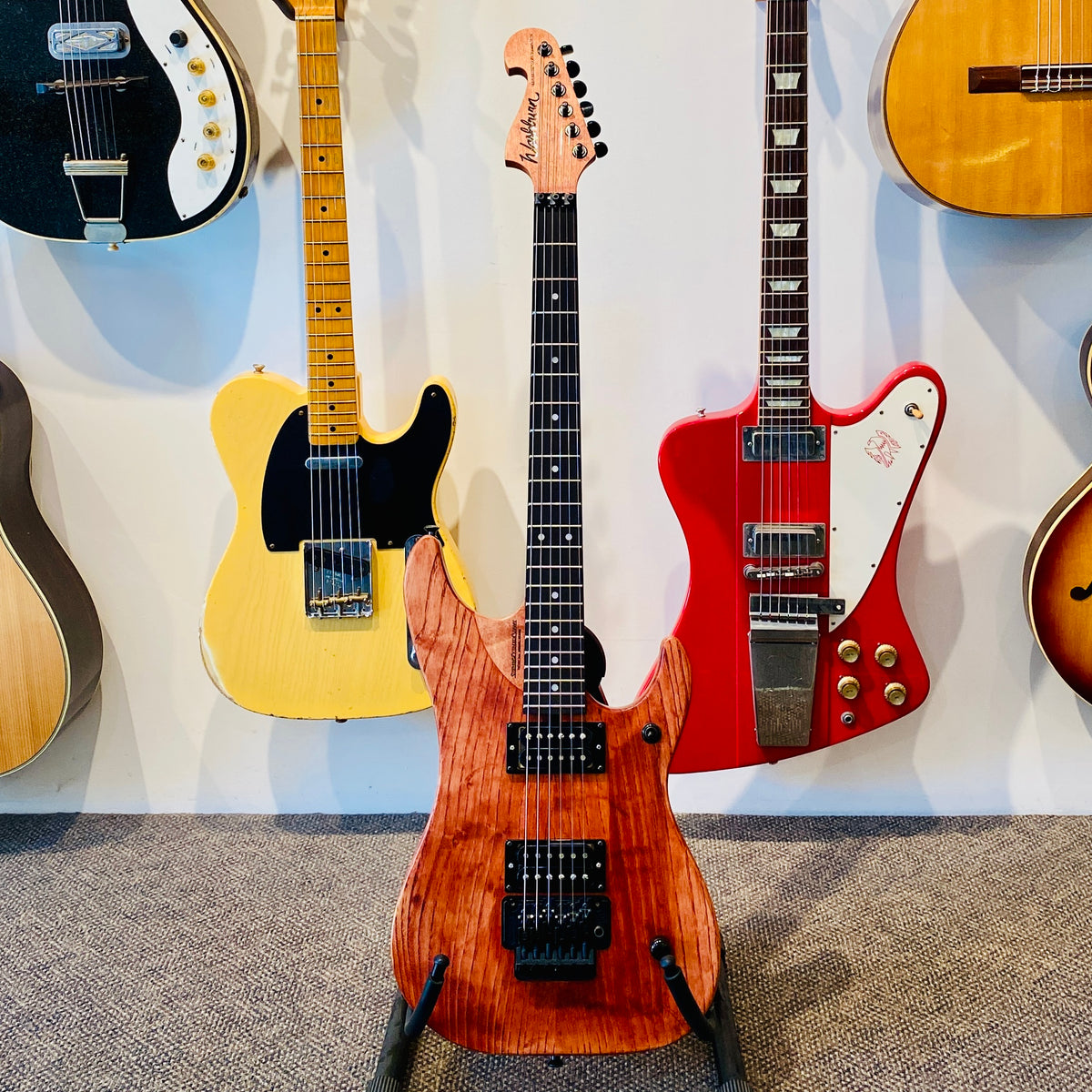

This version of Nuno Bettencourt Signature N4 features a swamp ash S style body and maple neck with ebony fretboard. The body has a red satin stain finish applied. The body-neck joint makes use of the Stephen's Extended Cutaway, patented by Stephen's Stringed Instruments in Seattle, Washington.  It definitely meets its design objectives!

The original humbuckers in this guitar have been replaced.

This example is in very good overall shape with very little play wear or fret wear. It is plays cleanly up the neck and comes with the original black molded hardshell case.



There are no refunds or returns on used items unless authorized in advance by a Twelfth Fret Sales Associate at time of sale. View Our Full Terms Here



---

DETAILS:

• Instrument Model:  N4 Nuno Bettencourt Ash
• Instrument Manufacturer:  Washburn
• Instrument year:  1997
• Instrument Finish: Red stain satin
• Instrument Class:  Solidbody electric
• Instrument serial number:  9703030
• Country of Origin: USA
• Instrument Condition: Very good with only very minor play wear and fret wear. Humbuckers replaced.
• Right-handed
• Instrument Weight Imperial:   6.75 lbs
• Instrument Weight Metric:   3.06 kgs
• Scale Length Imperial:   25.5 in
• Scale Length Metric:   647.7 mm
• Nut Width Imperial:    1.642 in
• Nut Width Metric:  41.71 mm
• CITIES Documentation Required:  No
• Case included:  Yes
• Case original:  Yes
• Items in Case: N/A
• Case Type: Black molded hardshell
• Consignment: Yes
• Product ID: 191113
