Ampeg Dan Armstrong ADA6 Solidbody Electric 2006 [USED]

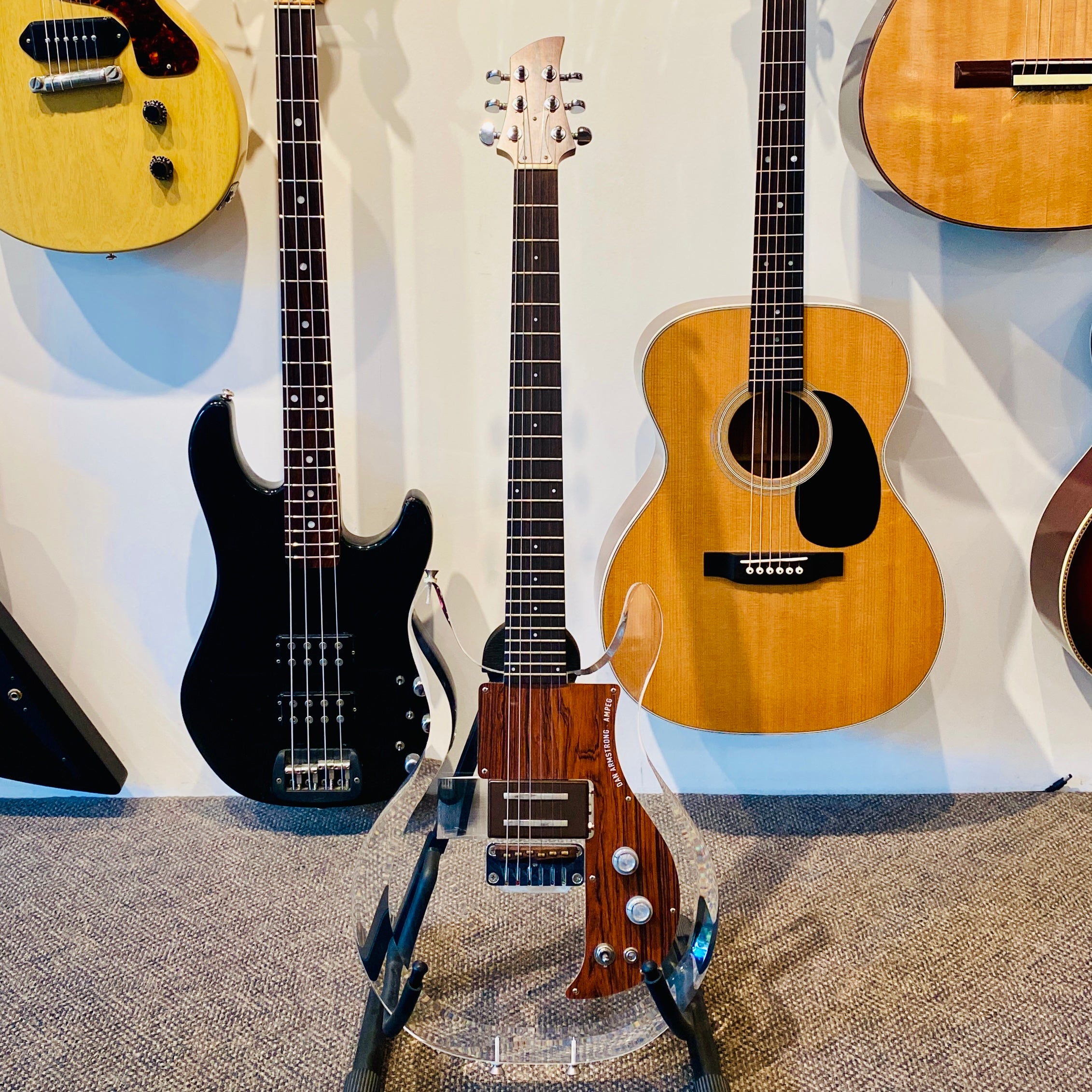

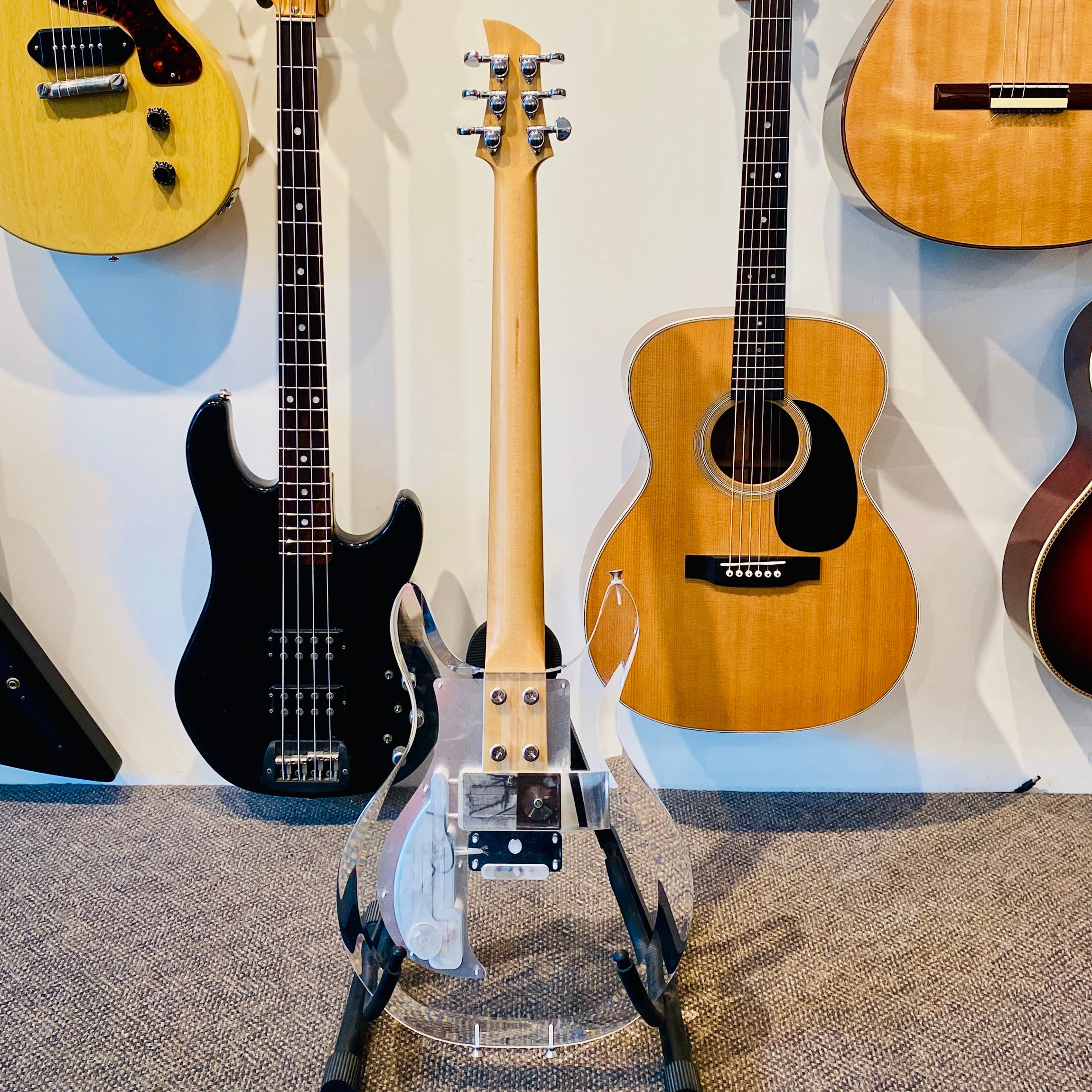

Here is a Ampeg Dan Armstrong ADA6 Solidbody Electric, built in Japan at the start of the 2006 reissue cycle. The reissue cycles ran from 1998 to 2001, and again from 2006 to 2011. Bass versions were also available. Lucite, also sold as Perspex and Plexiglas, was chosen for its clarity and availability.

This example is in very good, clean and original condition with only light wear scratches. It is loaded with a humbucker pickup but also comes the single coil pickup in the included hardshell case.

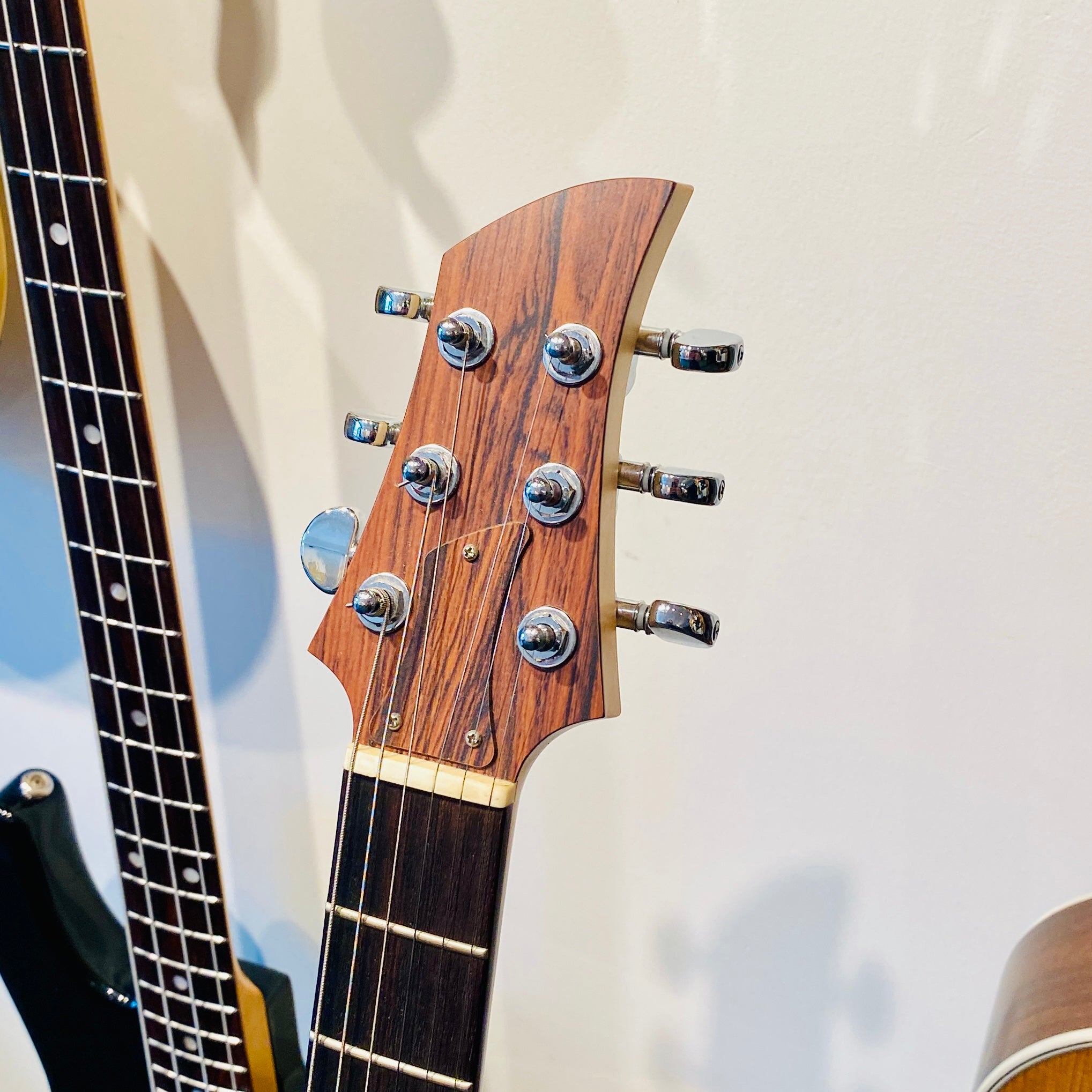

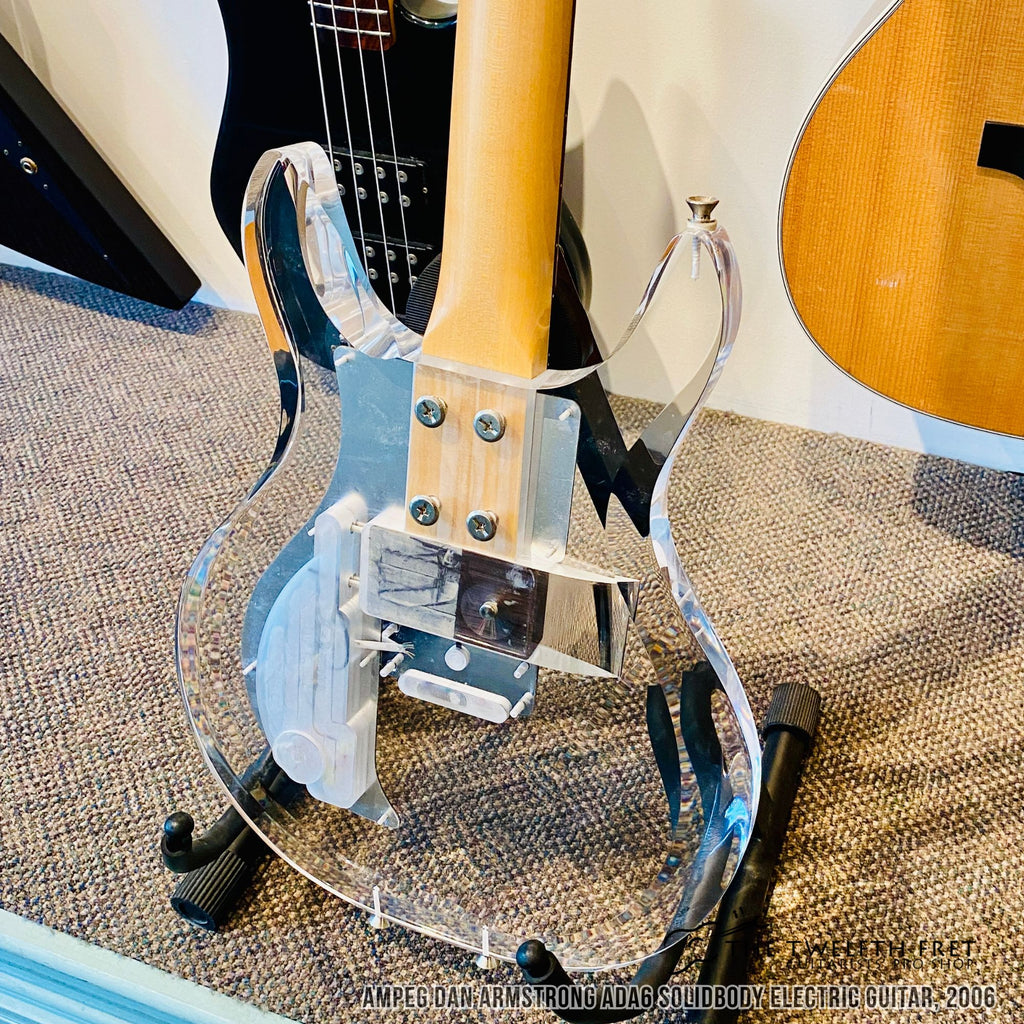

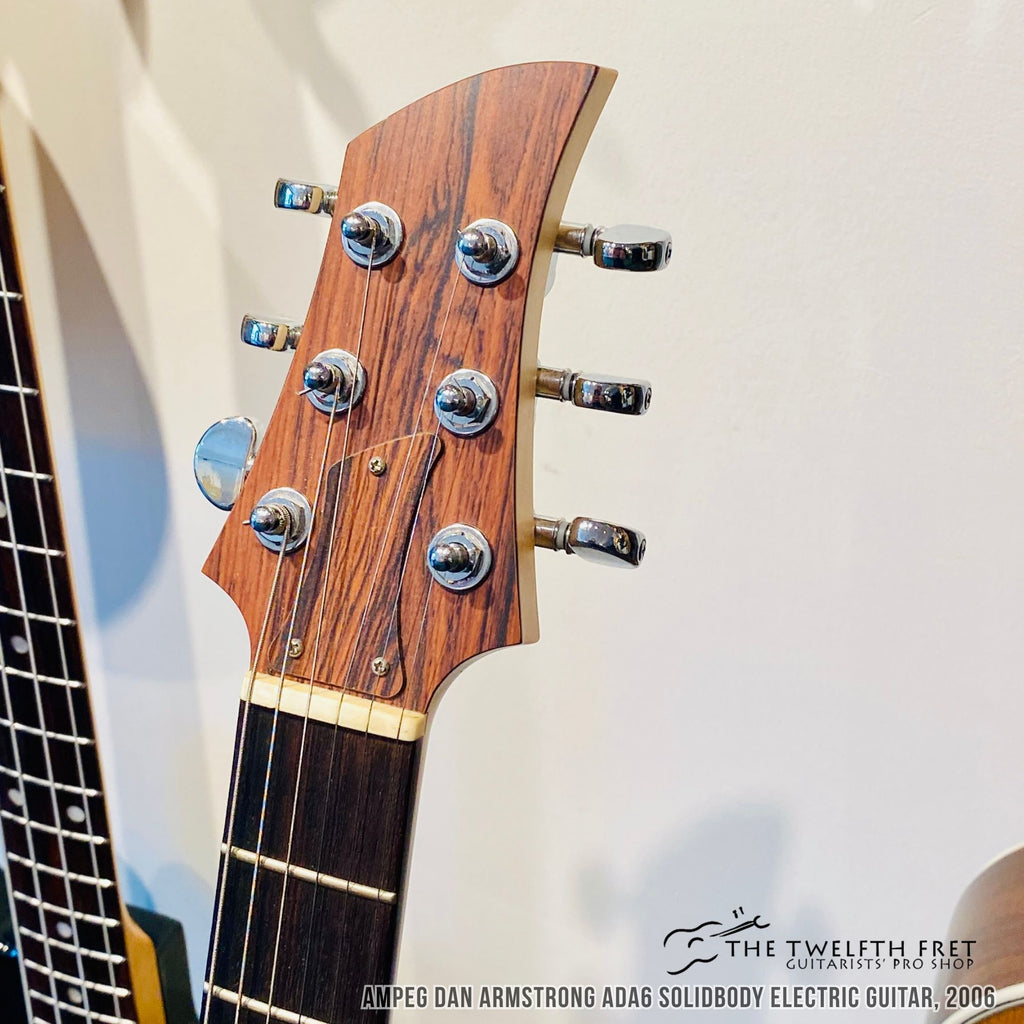

Originally built from 1969 to 1971, the Ampeg Dan Armstrong model paired a Lucite body, and a 24-fret Maple neck with Rosewood fingerboard providing unrestricted access to the highest registers, woodgrain Formica pickguard and headplate. The electronics are straightforward though there was another also less visible feature. The single pickup could be released, popped out, and another pickup slid into its place, in moments. Though this guitar has a single pickup, there is a three-way toggle switch, which has unique functions described below. The pickups on these instruments were designed and built by Dan Armstrong’s son, Kent Armstrong, who still makes pickups.

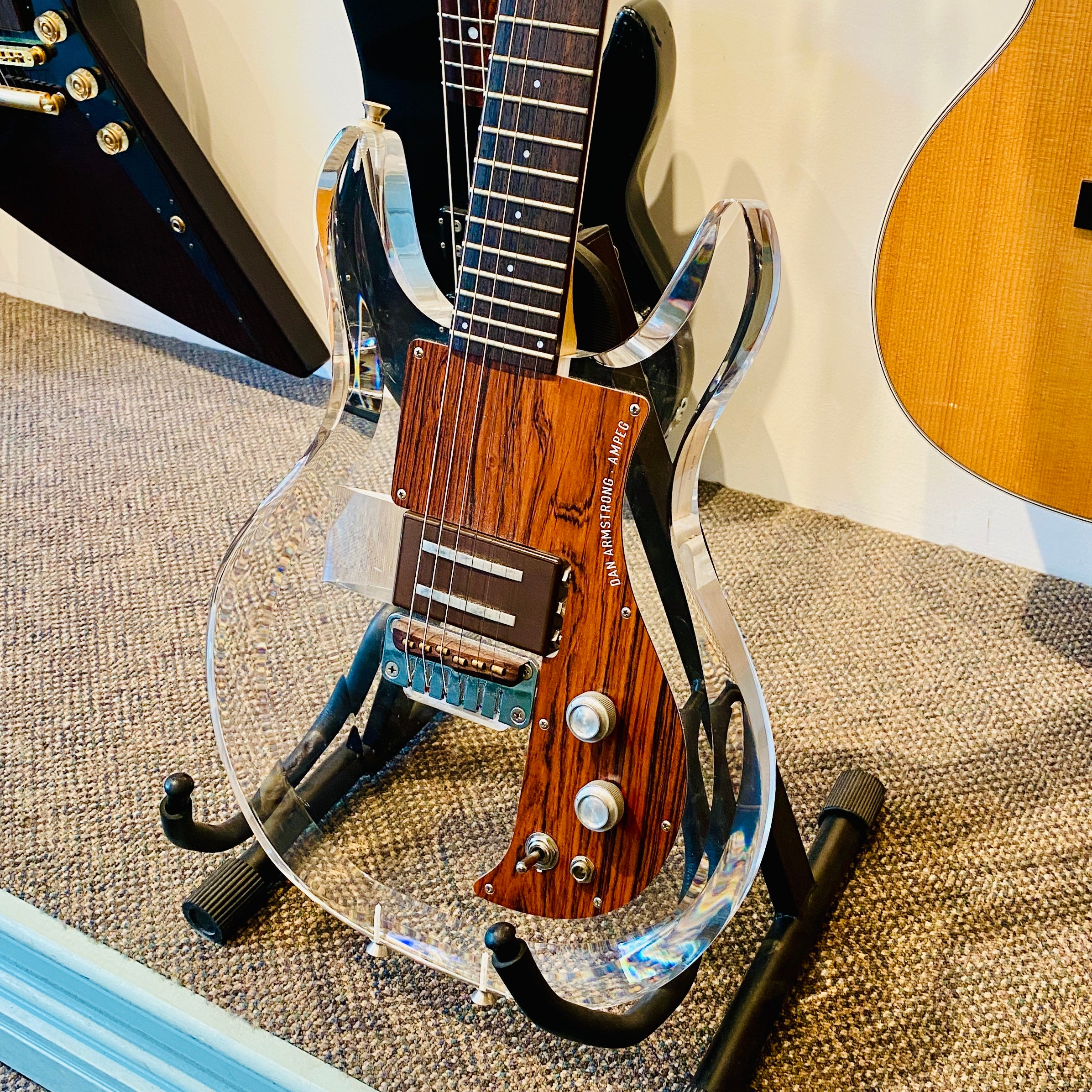

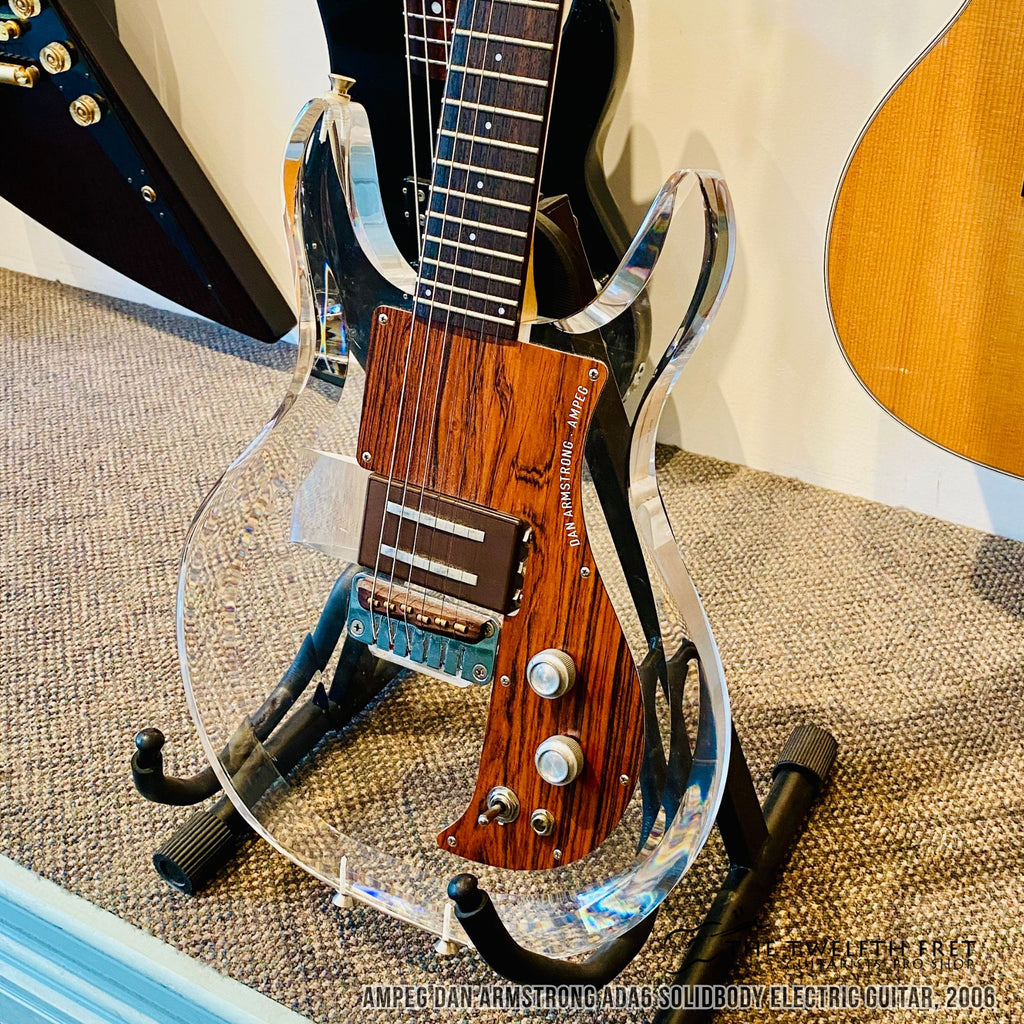

The original run of guitars used a Danelectro style metal plate bridge with a Rosewood piece as a saddle. On the original 1969 models, Brazilian Rosewood was used, but all of the reissues use Indian Rosewood. The bridge plate is the same, but the saddle is a larger block of Rosewood with brass saddle inserts.

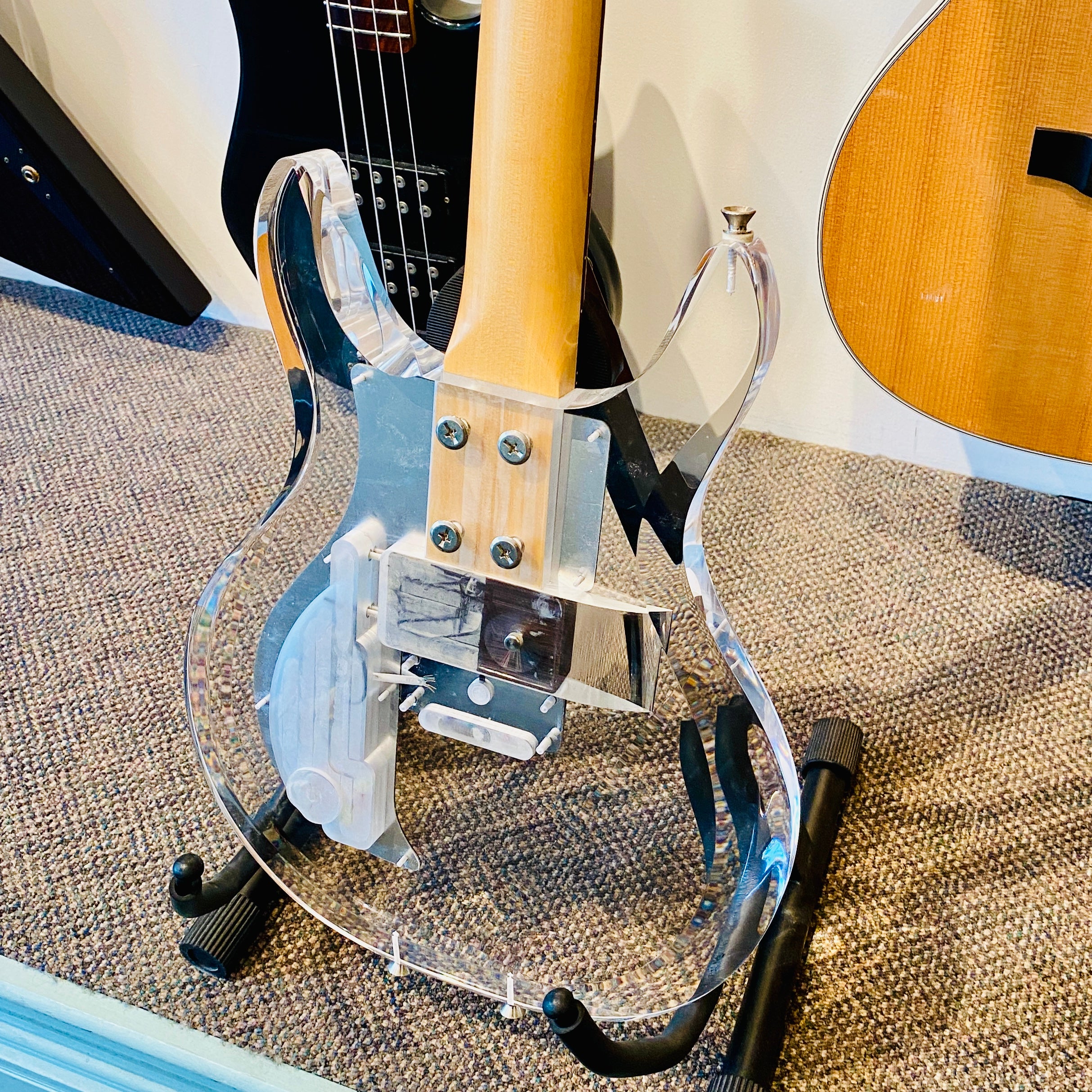

Though it was quickly adopted for stage use by a number of high-profile players including members of The Rolling Stones, John Kay of Steppenwolf, these Lucite models did not stay in production for long, and that’s partly related to the nature of the body material. Though a plastic, the bodies were not poured or molded – they were carved and polished, and with the base price of the material this made them expensive and time-consuming to make. And, they were on the heavy side.

Here is an excerpt from the Ampeg Dan Armstrong ADA6 manual regarding the controls:
“The unique Ampeg Dan Armstrong Tone Control circuit offers incredible tonal flexibility from a single
pickup unit. A 3-position switch is used to allow various “presets”.

In the CENTER position, the TONE control is bypassed with the signal sent from the VOLUME control directly to the instrument output jack.

In the FORWARD position, the TONE control acts in a conventional way, smoothly reducing high frequencies to a warm,
dark timbre.

In the REAR position, different frequencies are affected by the TONE control, which allows a sound
reminiscent of a half-cocked wah pedal. Good for over- driven solos!

When the TONE control is fully on (clockwise) little effect will be heard. As the TONE control is rotated counterclockwise, the effect of the FRONT and REAR switch positions becomes more apparent. A bit of experimentation will provide you with some interesting and useful sounds.”



There are no refunds or returns on used items unless authorized in advance by a Twelfth Fret Sales Associate at time of sale. View Our Full Terms Here



---

DETAILS:

• Instrument Model:  Dan Armstrong ADA6
• Instrument Manufacturer: Ampeg
• Instrument year:  2006
• Instrument Finish: Clear lucite
• Instrument Class: Solidbody electric
• Instrument serial number:  DA06040047
• Country of Origin: Japan
• Instrument Condition: Very good with some minor cosmetic play wear scratches
• Right-handed
• Instrument Weight Imperial:  9.18 lbs
• Instrument Weight Metric:  4.17 kgs
• Scale Length Imperial:   24.5 in
• Scale Length Metric:   624 mm
• Nut Width Imperial:   1.653 in
• Nut Width Metric:  42 mm
• CITIES Documentation Required:  No
• Case included:  Yes
• Case original:  Yes
• Items in Case:  single pickup
• Case Type: Hardshell
• Consignment: Yes
• Product ID: 190979
